10.4 Inch G104STN01 TFT LCD Display G104STN01.0 Display Panel 800*600 LVDS 20Pin
10.4 Inch G104STN01 TFT LCD Display G104STN01.0 Display Panel 800*600 LVDS 20Pin
15.6" IPS Laptop LCD Screen LP156WF4-SLB5 LP156WF4 SLC1 LP156WF4-SLB2 LP156WF4 SLB3 LED Display Panel FHD 1920x1080 40pin LVDS
NOTE: 1.Before you place your order, if you are not sure which screen model you need, please be sure to contact customer service and we will get back to you promptly.
2.We may ship a compatible screen model according to the inventory. If you need to specify the model, please leave a message or contact customer service.
LCD Screen Parameters
Model: LP156WF4-SLB5 or Compatible Model.
Screen Size: 15.6"
Pixel Number: 1920(RGB)×1080, FHD, 141PPI.
Screen Type: IPS.
Contrast Ratio: 400:1 (Typ.) (TM).
Brightness: 300 cd/m² (Typ.).
Display Colors: 262K, 60% NTSC.
Viewing Angle: 80/80/80/80 (Typ.)(CR≥10).
Backlight: WLED.
Surface: Matte/Glossy.
Signal Interface: LVDS (2 ch, 6-bit) , 40 pins Connector.
Quality: A, Tested well before shipping.
Warranty: 180 days.
LVDS (2 ch, 6-bit) , 40 pins Connector
Genuine A1398 A1425 A1502 LCD LED LVDs Display Screen Flex Cable for Macbook Pro Retina 13" 15" 2012 2013 2014 2015 Year
Descriptions:
Product Name: LCD LED LVDS Display Screen Cable
Model: For Macbook Pro Retina A1398 A1425 A1502
Years: 2012 2013 2014 2015
Conditions: Original Used
Testing: Full Tested Good Working
Warranty: 3 Months
Package Including: Please choose the options online
Compatible model:
A1398
Mid 2012 For Macbook Pro 10.1 Retina 15" A1398 EMC 2512 MC975LL/A 2.3 GHz "Core i7" (I7-3615QM)
Mid 2012 For Macbook Pro 10.1 Retina 15" A1398 EMC 2512 MC976LL/A 2.6 GHz "Core i7" (I7-3720QM)
Mid 2012 For Macbook Pro 10.1 Retina 15" A1398 EMC 2512 BTO/CTO 2.7 GHz "Core i7" (I7-3820QM)
Early 2013 For Macbook Pro 10.1 Retina 15" A1398 EMC 2673 ME664LL/A 2.4 GHz "Core i7" (I7-3635QM)
Early 2013 For Macbook Pro 10.1 Retina 15" A1398 EMC 2673 ME665LL/A 2.7 GHz "Core i7" (I7-3740QM)
Early 2013 For Macbook Pro 10.1 Retina 15" A1398 EMC 2673 BTO/CTO 2.8 GHz "Core i7" (I7-3840QM)
Late 2013 (IG) For Macbook Pro 11.2 Retina 15-inch A1398 EMC 2674 ME293LL/A 2.0 GHz "Core i7" (I7-4750HQ)
Late 2013 (IG) For Macbook Pro 11.3 Retina 15-inch A1398 EMC 2745 ME294LL/A 2.3 GHz "Core i7" (I7-4850HQ)
Late 2013 (IG) For Macbook Pro 11.3 Retina 15-inch A1398 EMC 2745 ME874LL/A 2.6 GHz "Core i7" (I7-4960HQ)
Late 2013 (DG) For Macbook Pro 11.3 Retina 15-inch A1398 EMC 2745 ME294LL/A 2.3 GHz "Core i7" (I7-4850HQ)
Late 2013 (DG) For Macbook Pro 11.3 Retina 15-inch A1398 EMC 2745 ME874LL/A 2.6 GHz "Core i7" (I7-4960HQ)
Mid 2014 (IG) For Macbook Pro 11.2 Retina 15-inch A1398 EMC 2876 MGXA2LL/A 2.2 GHz "Core i7" (I7-4770HQ)
Mid 2014 (IG) For Macbook Pro 11.3 Retina 15-inch A1398 EMC 2876 MGXC2LL/A 2.5 GHz "Core i7" (I7-4870HQ)
Mid 2014 (IG) For Macbook Pro 11.3 Retina 15-inch A1398 EMC 2876 BTO/CTO 2.8 GHz "Core i7" (I7-4980HQ)
Mid 2014 (DG) For Macbook Pro 11.3 Retina 15-inch A1398 EMC 2881 MGXC2LL/A 2.5 GHz "Core i7" (I7-4870HQ)
Mid 2014 (DG) For Macbook Pro 11.3 Retina 15-inch A1398 EMC 2881 BTO/CTO 2.8 GHz "Core i7" (I7-4980HQ)
Mid 2015 (IG) For Macbook Pro 11.4 Retina 15-inch A1398 EMC 2909 MJLQ2LL/A 2.2 GHz "Core i7" (I7-4770HQ)
Mid 2015 (IG) For Macbook Pro 11.4 Retina 15-inch A1398 EMC 2909 MJLT2LL/A 2.5 GHz "Core i7" (I7-4870HQ)
Mid 2015 (IG) For Macbook Pro 11.4 Retina 15-inch A1398 EMC 2909 BTO/CTO 2.8 GHz "Core i7" (I7-4980HQ)
Mid 2015 (DG) For Macbook Pro 11.5 Retina 15-inch A1398 EMC 2910 MJLT2LL/A 2.5 GHz "Core i7" (I7-4870HQ)
Mid 2015 (DG) For Macbook Pro 11.5 Retina 15-inch A1398 EMC 2910 BTO/CTO 2.8 GHz "Core i7" (I7-4980HQ)
A1425
Late 2012 For Macbook Pro 10.2 13-inch A1425 EMC 2557 MD212LL/A 2.5 GHz "Core i5" (I5-3210M)
Late 2012 For Macbook Pro 10.2 13-inch A1425 EMC 2557 MD213LL/A 2.9 GHz "Core i7" (I7-3520M)
Early 2013 For Macbook Pro 10.2 13-inch A1425 EMC 2672 ME662LL/A 2.6 GHz "Core i5" (I5-3230M)
Early 2013 For Macbook Pro 10.2 13-inch A1425 EMC 2672 ME662LL/A 3.0 GHz "Core i7" (I7-3540M)
A1502
Late 2013 For Macbook Pro 11.1 Retina 13" A1502 EMC 2678 ME864LL/A 2.4 GHz "Core i5" (I5-4258U)
Late 2013 For Macbook Pro 11.1 Retina 13" A1502 EMC 2678 ME865LL/A 2.4 GHz "Core i5" (I5-4258U)
Late 2013 For Macbook Pro 11.1 Retina 13" A1502 EMC 2678 ME866LL/A 2.6 GHz "Core i5" (I5-4288U)
Late 2013 For Macbook Pro 11.1 Retina 13" A1502 EMC 2678 BTO/CTO 2.8 GHz "Core i7" (I7-4558U)
Mid 2014 For Macbook Pro 11.1 Retina 13" A1502 EMC 2875 MGX72LL/A 2.6 GHz "Core i5" (I5-4278U)
Mid 2014 For Macbook Pro 11.1 Retina 13" A1502 EMC 2875 MGX82LL/A 2.6 GHz "Core i5" (I5-4278U)
Mid 2014 For Macbook Pro 11.1 Retina 13" A1502 EMC 2875 MGX92LL/A 2.8 GHz "Core i5" (I5-4308U)
Mid 2014 For Macbook Pro 11.1 Retina 13" A1502 EMC 2875 BTO/CTO 3.0 GHz "Core i7" (I7-4578U)
Early 2015 For Macbook Pro 12.1 Retina 13" A1502 EMC 2835 MF839LL/A 2.7 GHz "Core i5" (I5-5257U)
Early 2015 For Macbook Pro 12.1 Retina 13" A1502 EMC 2835 MF840LL/A 2.7 GHz "Core i5" (I5-5257U)
Early 2015 For Macbook Pro 12.1 Retina 13" A1502 EMC 2835 MF841LL/A 2.9 GHz "Core i5" (I5-5287U)
Early 2015 For Macbook Pro 12.1 Retina 13" A1502 EMC 2835 BTO/CTO 3.1 GHz "Core i7" (I7-5557U)
Photos:
LCD Cable LED LVDs Screen Display Connector For Macbook Pro Retina 13'' 15'' A1708 A1707 A1706 LCD Display flex Cable 2017 2016
Display Connector For Macbook Pro Retina 13'' 15'' A1708 A1707 A1706 LCD Display flex Cable 2017 2016
Compatible Model: | For A1706 A1707 A1708 | |
Compatible Year ： | 2016 2017 | |
Part Number： | N/A | |
Quality Grade: | Original and Perfect Function |
|
Itemt: | LCD Cable | |
Payament : | Escrow，T/T ,Western Union ,Money Gram. Paypal and others | |
Shipment | Epackage Air Mail DHL UPS TNT Fedex EMS AND Others | |
Delivery Time: | 1-3 days after confirm the payment | |
Compatible : | --Late 2016, MB Pro Retina 13.3 A1706, MLH12LL/A, EMC 3071 --Mid 2017, MB Pro Retina 13.3 A1706, MPXV2LL/A, EMC 3163 --Late 2016, MB Pro Retina 13.3 A1708, MLL42LL/A, EMC 2978 --Mid 2017, MB Pro Retina 13.3 A1708, MPXQ2LL/A, EMC 3164 --Late 2016, MB Pro Retina 15.4 A1707, MLH32LL/A MLH42LL/A, EMC 3072 --Mid 2017, MB Pro Retina 15.4 A1707, MPTR2LL/A MPTT2LL/A, EMC 3162 |

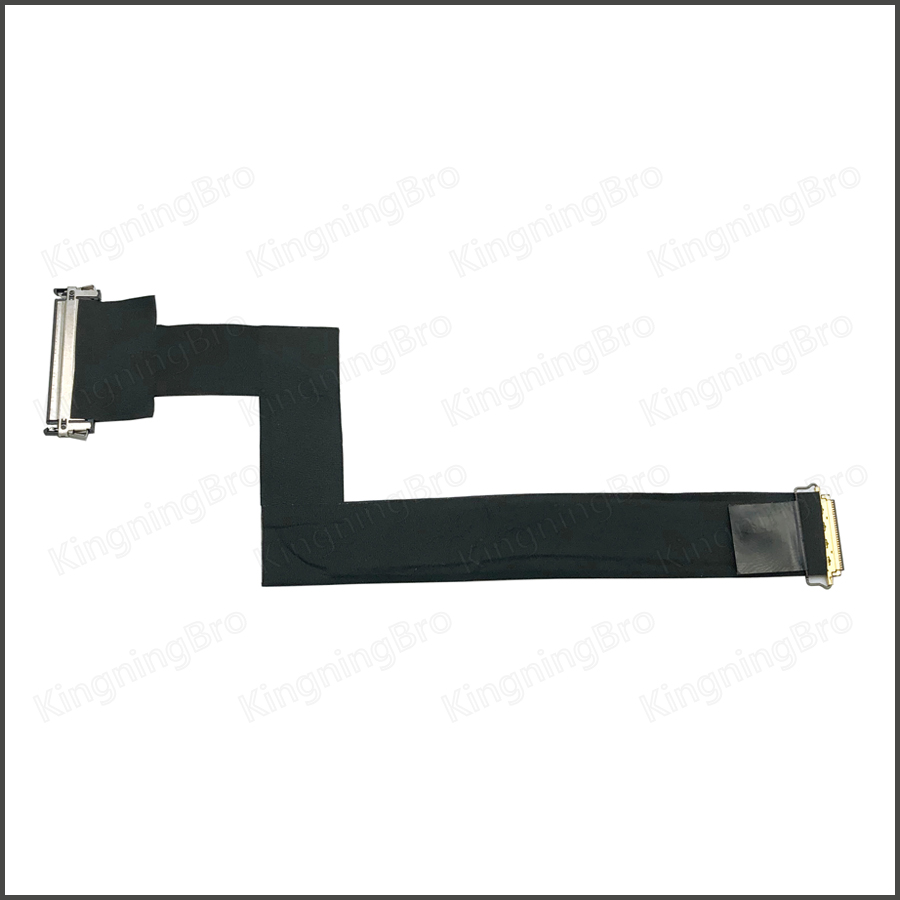

NEW LCD LED LVDS Cable Screen Display Flex Cable 593-1280 593-1350 For iMac 21.5" A1311 MC508 MC509 MC309 MC812 MC978 2010 2011
Professional Wholesaler for Mac-iMac Spare Parts
Product Name:For iMac A1311 21.5" LCD LED LVDS Screen Display Cable
Compatible year:2010 2011

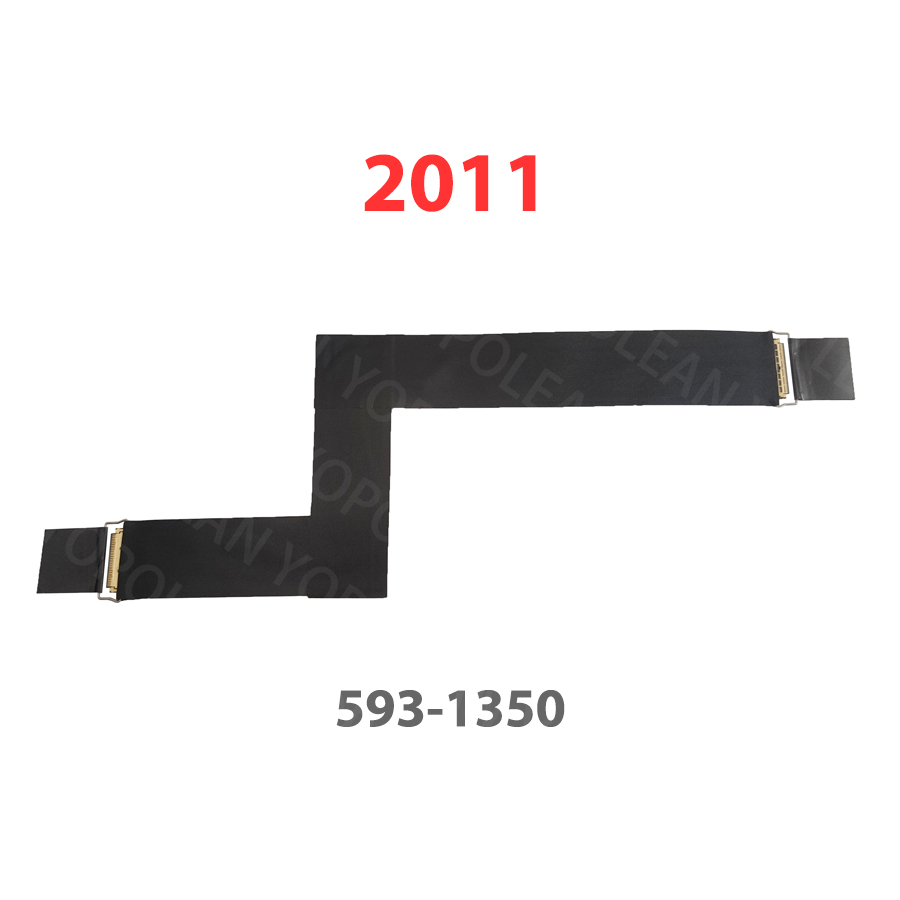

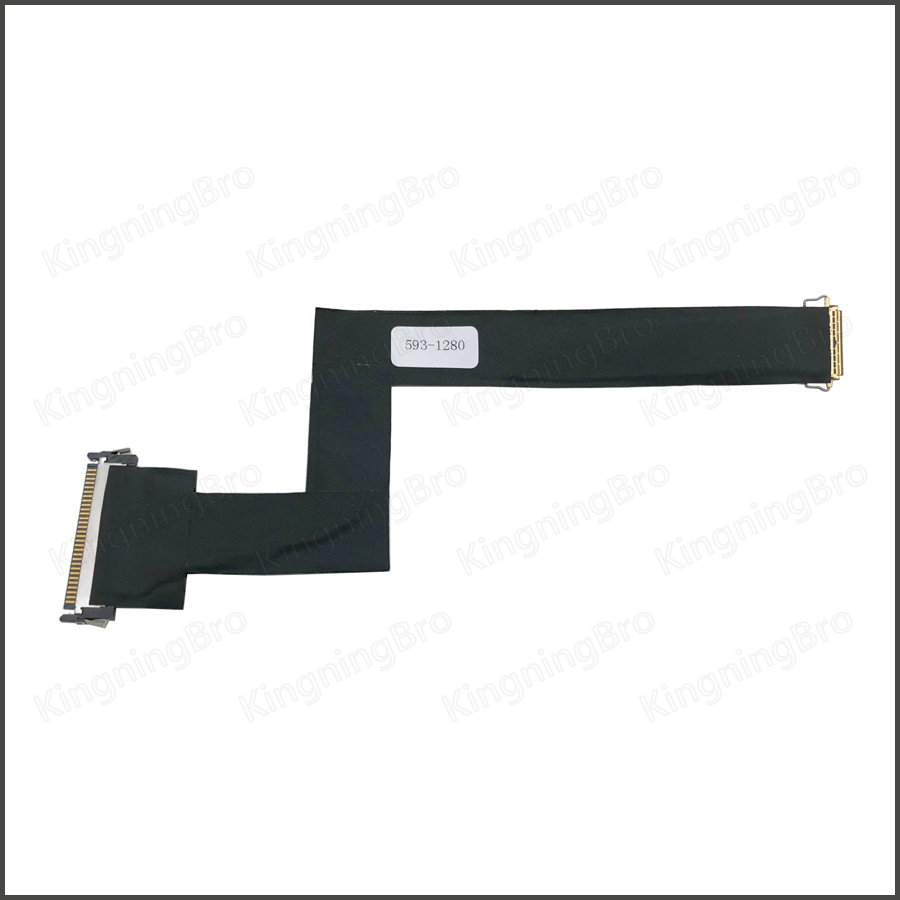

P/N: 593-1280 (2010)
593-1350(2011)
593-1280 Compatible Model:
Mid 2010 For iMac 11,2 21.5" EMC 2389 MC508LL/A 3.06 GHz "Core i3"
Mid 2010 For iMac 11,2 21.5" EMC 2389 MC509LL/A 3.2 GHz "Core i3"
Mid 2010 For iMac 11,2 21.5" EMC 2389 BTO/CTO 3.6 GHz "Core i3"
593-1350 Compatible Model:
Mid 2011 For iMac 12,1 21.5" EMC 2428 MC309LL/A 2.5 GHz "Core i5"
Mid 2011 For iMac 12,1 21.5" EMC 2428 MC812LL/A 2.7 GHz "Core i5"
Mid 2011 For iMac 12,1 21.5" EMC 2428 MC812LL/A 2.8 GHz "Core i7"
Late 2011 For iMac 12,1 21.5" EMC 2428 MC978LL/A 3.1 GHz "Core i3"
Genuine A1425 A1502 A1398 LCD LED LVDs Display Screen Flex Cable for Macbook Pro Retina 13" 15" 2012 2013 2014 2015 Year
Spare Parts for iMac/Macboo/Mac mini/Mac Pro etc.
Product Name:A1425 A1502 A1398 LCD Cable
Year:2012-2015
APN:N/A
Compatible Order NO.:(See the DescriptionBelow-COMPATIBLE)
Product Condition:Tested,Good Working.
Please read below before purchasing this item:
Manufacturers often use a different or revised part for the same model. You must confirm the stated FRU "First referral units" or MPN "Manufacturers part number" matches with your part! Also check the illustrative item photo, item specifics and compare all with your original part to ensure compatibility!
DON'T order parts based on the device model number only! Buying by the model is the wrong practice and never guarantees compatibility! If you are unsure about how to check compatibility please contact us before purchasing!"The customer is responsible for ordering the correct parts"
Buy with confidence: Before shipping, each product is rigorously tested with compatible device by a qualified technician to ensure it is free from manufacturing,mechanical and electrical defects.
NOTE:The Company and / or product names in the listing are trademarks owned by the respective company / manufacturer or others. iPartsleader is an independent seller of Non-OEM / Unbranded / Generic accessories, and does NOT have any relationship with the trademark owner/manufacturer.The trademark owner/manufacturer does not necessarily endorse the use and performance of our products.
1 x LCD Cable
(Please choose the option online)
A “Very Good" Minor scratches/scuffs/chips. No dents/dings.
B “Good" Moderate scratches/scuffs/chips. Minor dents/dings.
C “Acceptable" Major scratches, scuffs, dents, ect.
YEAR | NAME | SIZE | MODEL | EMC | ORDER# | PROCESSOR |
Late 2012 | MB Pro Retina | 13.3 | A1425 | (EMC 2557) | MD212xx/A | "Core i5" 2.5 13" Retina |
Late 2012 | MB Pro Retina | 13.3 | A1425 | (EMC 2557) | BTO/CTO | "Core i7" 2.9 13" Retina |
Early 2013 | MB Pro Retina | 13.3 | A1425 | (EMC 2672) | ME662xx/A | "Core i5" 2.6 13" |
Early 2013 | MB Pro Retina | 13.3 | A1425 | (EMC 2672) | BTO/CTO | "Core i7" 3.0 13" |
YEAR | NAME | SIZE | MODEL | EMC | ORDER# | PROCESSOR |
Late 2013 | MB Pro Retina | 13.3 | A1502 | (EMC 2678) | ME864xx/A | "Core i5" 2.4 13" |
Late 2013 | MB Pro Retina | 13.3 | A1502 | (EMC 2678) | ME866xx/A | "Core i5" 2.6 13" |
Late 2013 | MB Pro Retina | 13.3 | A1502 | (EMC 2678) | BTO/CTO | "Core i7" 2.8 13" |
Mid 2014 | MB Pro Retina | 13.3 | A1502 | (EMC 2875) | MGX72LL/A | Core i5" 2.6 13" |
Mid 2014 | MB Pro Retina | 13.3 | A1502 | (EMC 2875) | MGX92LL/A | Core i5" 2.8 13" |
Mid 2014 | MB Pro Retina | 13.3 | A1502 | (EMC 2875) | BTO/CTO | "Core i7" 3.0 13" |
Early 2015 | MB Pro Retina | 13.3 | A1502 | (EMC 2835) | MF839xx/A | "Core i5" 2.7 13" |
Early 2015 | MB Pro Retina | 13.3 | A1502 | (EMC 2835) | MF841xx/A | "Core i5" 2.9 13" |
Early 2015 | MB Pro Retina | 13.3 | A1502 | (EMC 2835) | BTO/CTO | "Core i7" 3.1 13" |
YEAR | NAME | SIZE | MODEL | EMC | ORDER# | PROCESSOR |
Mid-2012 | MB Pro Retina | 15.4 | A1398 | (EMC 2512) | MC975xx/A | "Core i7" 2.3 15" Retina |
Mid-2012 | MB Pro Retina | 15.4 | A1398 | (EMC 2512) | MC976xx/A | "Core i7" 2.6 15" Retina |
Mid-2012 | MB Pro Retina | 15.4 | A1398 | (EMC 2512) | MD831xx/A | "Core i7" 2.7 15" Retina |
Early 2013 | MB Pro Retina | 15.4 | A1398 | (EMC 2673) | ME664xx/A | "Core i7" 2.4 15" |
Early 2013 | MB Pro Retina | 15.4 | A1398 | (EMC 2673) | ME665xx/A | "Core i7" 2.7 15" |
Early 2013 | MB Pro Retina | 15.4 | A1398 | (EMC 2673) | BTO/CTO | "Core i7" 2.8 15" |
Late 2013 | MB Pro Retina | 15.4 | A1398 | (EMC 2674) | ME293xx/A | "Core i7" 2.0 15"(IG) |
Late 2013 | MB Pro Retina | 15.4 | A1398 | (EMC 2674) | BTO/CTO | "Core i7" 2.3 15"(IG) |
Late 2013 | MB Pro Retina | 15.4 | A1398 | (EMC 2674) | BTO/CTO | "Core i7" 2.6 15" (IG) |
Late 2013 | MB Pro Retina | 15.4 | A1398 | (EMC 2745) | ME294xx/A | "Core i7" 2.3 15" (DG) |
Late 2013 | MB Pro Retina | 15.4 | A1398 | (EMC 2745) | BTO/CTO | "Core i7" 2.6 15"(DG) |
Mid 2014 | MB Pro Retina | 15.4 | A1398 | (EMC 2876) | MGXA2LL/A | Core i7" 2.2 15" (IG) |
Mid 2014 | MB Pro Retina | 15.4 | A1398 | (EMC 2876) | BTO/CTO | Core i7" 2.5 15"(IG) |
Mid 2014 | MB Pro Retina | 15.4 | A1398 | (EMC 2876) | BTO/CTO | Core i7" 2.8 15" (IG) |
Mid 2014 | MB Pro Retina | 15.4 | A1398 | (EMC 2881) | MGXC2LL/A | Core i7" 2.5 15" (DG) |
Mid 2014 | MB Pro Retina | 15.4 | A1398 | (EMC 2881) | BTO/CTO | Core i7" 2.8 15" (DG) |
Mid 2015 | MB Pro Retina | 15.4 | A1398 | (EMC 2909) | MJLQ2LL/A | "Core i7" 2.2 15"(IG) |
Mid 2015 | MB Pro Retina | 15.4 | A1398 | (EMC 2909) | BTO/CTO | "Core i7" 2.5 15" (IG) |
Mid 2015 | MB Pro Retina | 15.4 | A1398 | (EMC 2909) | BTO/CTO | "Core i7" 2.8 15" (IG) |
Mid 2015 | MB Pro Retina | 15.4 | A1398 | (EMC 2910) | MJLT2LL/A | "Core i7" 2.5 15" (DG) |
Mid 2015 | MB Pro Retina | 15.4 | A1398 | (EMC 2910) | BTO/CTO | "Core i7" 2.8 15" (DG) |
1.We can ship to Worldwide except the listed exclusions countries .
2. The item will be sent to your address listed in the PayPal.the shipping address as according to your paypal address, Make sure your shipping address is right ,We don't accept the worry shipping address for our item is free ship.
3. Usually the delivery time is 5-16 business days (USA. AU. CA ).8-20 business days( European, not UK).To other places worldwide maybe cost more than 20 business days. (Except the Standard Int'l Shipping),Since the delivery time can vary from country to country, if you would like an update on the shipping status of your item(s), please email us before ordering and we will reply you within 24 hours.days to arrive South America .
4.Any import tax charge or feeat destination country is buyer's responsibility, pls note it. Also the buyer need to pay remote fees if the deliver address is remote area in DHL/UPS/TNT orFedex's (express shipping) systerm.
5. You will be notified once the shipment has been made.The packages are safe with signature-required. if None sign for the package, it will be return ,please pick it up in your local post office. .
COUNTRY | STANDARD | EXPRESS |
US, Canada, UK, Asia | 10-20 Business Days | 4-7 Business Days |
New Zealand, Germany, Australia | 12-20 Business Days | 4-9 Business Days |
France, Italy, Swiss, Netherlands | 16-21 Business Days | 5-11 Business Days |
North Europe | 17-22 Business Days | 6-12 Business Days |
Russia, East Europe | 19-23 Business Days | 7-13 Business Days |
South American, other Countries | 30-45 Business Days | 9-14 Business Days |
Copyright © 2013 iPartsleader. All rights reserved.
New Late 2020 for MacBook Pro 13.3" M1 A2338 LCD Cable LVDs Display Screen Flex Cable 821-02854-03 821-02854-A EMC 3578
1.NEWFor Apple Macbook Pro A2338 13" 2020 LCD Cable Tested 100% Working
2. Product Warranty: We have good after-sales services.
3. Information: We share the latest information of laptop spare parts in Chinese
market with all our customers
4.This is NOT an easy job for someone who has no technical skills with Disassembling
or Assembling laptop, So only purchase this item if you know how to install it.
5.Each Cable is tested before shipping and working .
Why Choose Us?
1.We areSpecializing in Electroic products Export. 10 Years experiences.
Above 20 factories working together wih us. Strict and strong QC Team. Excelent After-sale service system.
2. Product test 1 by 1 before shipping
3. Professional Sales Team, Service you before order and after order professional.
4. B2B and B2C sales platform. Alibaba Golden Member.
5. Your satisfaction is our greatest encouragement.
• About Quality: Every product will be tested before delivery, with special instruments or main boards to ensure working.
After receipt of the payment. The goods will be delivered within the processing time, and Tracking Number will be listed on Aliexpress Store and online tracking information will be available on the carrier’s website, such as DHL, EMS, FEDEX, China Post etc.
-As the rules are different in different countries. It’s impossible for us to know all the regulations and laws in every country.
-So after making a order, please offer us information about the description of goods and value for customs, in order to minimize the tax or duties in destionation countries for you. We will be glad to do according to your instructions.
-After receiving your goods. We strongly advice dear customers to inspect it right way to ensure it’s the right items you want to order.
-If there is any questions or confusion of misunderstanding, please feel free to contact us, it’s our pleasure to solve the problem for you.
-If you are satisfied with our goods. Please leave us a positive 5 stars feedback, we will be very appreciate for your efforts.
-We offer 6 months warranty for all our products. All returned parts are requested to be packaged as originally delivered, and original labels marked by us must not be removed, nor any of the parts have been used or damaged deliberately
Note: Customers should bear the cost for shipping goods back, we will pay for the shipping for resending
LCD FHD LVDS Cable For Asus FX504 FX63 FX504G Gm FX80G FX63V VD ZX63V S5AM770 DDBKLGLC010 screen LCDS BKLG EDP LVD CABLE 30 pins
LCD FHD LVDS Cable For Asus FX504 FX63 FX504G Gm FX80G FX63V VD ZX63V S5AM770 DDBKLGLC010 screen LCDS BKLG EDP LVD CABLE 30 pins
LCD FHD LVDS Cable For Asus FX504 FX63 FX504G Gm FX80G FX63V VD ZX63V S5AM770 DDBKLGLC010 screen LCDS BKLG EDP LVD CABLE 30 pins
Details of the computer screen cable:
For Asus laptop EDP cable
Connections: 30 pin
Cable code P/N :
14005-02660100 DDBKLGLC010
14005-02660200 DDBKLGLC000
14005-02660300 DDBKLGLC110
New LCD LED LVDS Display Screen Flex Cable 593-1280 For iMac 21.5" A1311 2010 EMC 2389
. Type: For iMac 21.5" A1311 LCD Screen Cable
. APN: 593-1280
. Conditions: New 100%
. Warranty: 6 Months
. Packing Include: 1 pcs Cable
Compatible Model:
. Mid 2010 For iMac 11,2 21.5" EMC 2389 MC508LL/A 3.06 GHz "Core i3"
. Mid 2010 For iMac 11,2 21.5" EMC 2389 MC509LL/A 3.2 GHz "Core i3"
. Mid 2010 For iMac 11,2 21.5" EMC 2389 BTO/CTO 3.6 GHz "Core i3"
Pictures
Shipment
. We send just to address specified on Aliexpress. Please be sure your address in Aliexpress is right.
. Usually Your order will arrive within 15-35 days (Brazil 20-40 days), Some countries or regions need more time.
. If parcel has not arrive within expected time, please fell free to contact us first, we will help you and give you a satisfied reply.
. Please don't open dispute within 60 days, You can contact us for refund or resend if order not arrive after 60 days.
. We are not responsible for any custom duty or import tax.
Service
. No matter what problem you encounter, please contact us as soon as possible.
. Open a dispute directly will not help solve the problem, We prefer to solve problems through communication.
. If you do not satisfied with the item, you contact us within 30 days.
. If you want to return the product, contact us before shipment, and we will tell you how to do.
. Atfer receive the returns, we will make full refund.
Feedback
LCD Display TTL LVDS Controller Board HDMI VGA 2AV 50PIN for AT070TN90 92 94 Support Automatically VS-TY2662-V1
Interface :50 PIN RGB
Input Port :DC005 socket
Input V :5V~12V
Input Current :1A
Package including:
Drive Board *1
The 800 * 480 at070tn92 screen program is sent by default, and all subsequent consequences (program incompatibility) shall not be borne by our party.
1. Product Description:
This drive board can
1, 1 channel VGA signal input
2, 2-way AV signal input
3. One channel of HDMI signal input, and this IC supports hdmi1.2
4. 1-way reverse signal input
5. It supports wide voltage input and can work normally between 5v-24v,
6. Standard backlight 6pin interface, which can be externally connected to high-voltage board
7. The driving board integrates LCD and LED backlight driving board,
8. Standard LVDS signal output, which can support LCD screens of single 6, single 8, double 6, double 8 and other standard LVDS signals, but only LCD screens with screen power supply of 3.3V
9. Standard key board interface and support dual color LED indicator display
10. Support TTL signal output,
Can support at070tn92,
AT065TN14
AT080TN52
AT090TN12
AT090TN10
AT070TN90
AT070TN93
At070tn94, TTL LCD with general 50pin interface
11. With the LCD adapter board, the following LCD screens can be supported
Ej070na01-1024x600 resolution
Ej080na04b-1024x768 resolution
Zj070na01, universal 40pin high score LCD screen
12. With the LCD adapter board, it can also support 4.3, 5, 6, 7-inch, 40pin general screen. See at0543tn24v, 1 for the definition
13. The larger output display resolution of the drive board is 1920x1080. When the display resolution exceeds 1440x900, the heat sink needs to be added according to the working condition of the IC to reduce the working temperature of the IC)
14. The VGA part of this IC can directly input YPbPr signal, which needs to be realized through software program
15. The driver board can add remote control function, which needs to be realized through software program
16. Support reversing control and display it on AV2. The reversing voltage supports voltage input within 50V
17. There are four positioning holes in the drive plate
18. Using the company's USB interface program download board, you can add logo on bin code by yourself.
